a built-in 2-channel mixer with Bluetooth®
Compact Active 2-Way Loudspeaker
MiniBO-5M is a versatile and portable 2-way active loudspeaker designed primarily for installation and professional audio applications, while remaining flexible for multimedia and small PA use. Equipped with a built-in 2-channel mixer and Bluetooth® stereo connectivity, it easily adapts to a variety of scenarios: from background music systems to compact portable setups. A dedicated DSP with four selectable presets optimizes performance according to placement and usage, ensuring clear and balanced sound in any environment.
Despite its compact size and lightweight polypropylene enclosure, the MiniBO-5M delivers impressive output thanks to a 5.25” woofer and 1” compression driver powered by a 60W RMS Class-D amplifier (120W peak). Installation is quick and flexible: the enclosure features two integrated M10 fly points for fixed mounting and is compatible with optional Wall Bracket and Tilt Bracket accessories for wall or ceiling installation.
Features
- 5,25’’ Woofer
- 1’’ compression driver horn loaded
- 60 W RMS
- Full Range PSU
- TWS 5.4 Bluetooth
- 2 channels preamplifier
- Mic/Line selection
- Combo + XLR (mix out)
- 2x M10 screw
- Brackets available
- PP enclosure
TECHNICAL SPECIFICATIONS
Acoustical Data
| Speaker Type | 2-way active loudspeaker |
| Frequency Response [-10 dB] | 76 Hz - 20 kHz |
| Max SPL | 120 dB |
| HF | 1” exit (V.C.: 1”) |
| LF | 5.25” (V.C.: 1.5”) |
| Dispersion | 70° H x 50° V |
| Crossover Frequency | 2700 Hz |
Amplifier
| Amp Class | D |
| RMS Power | 60 W |
| Peak power | 120 W |
DSP
| Bluetooth® | 5.4 TWS |

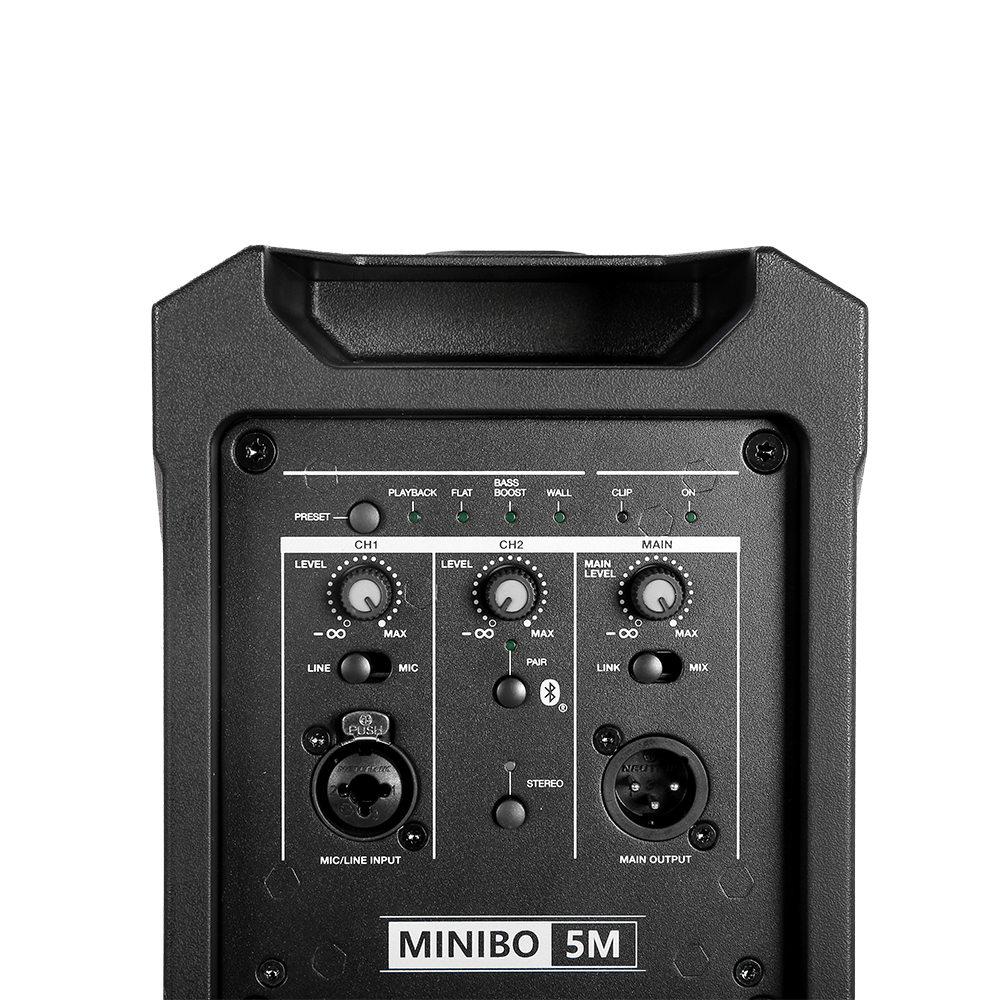

| Controls | Preset button CH1-CH2-MAIN level CH1 LINE/MIC switch Bluetooth®: PAIR/STEREO MAIN OUT LINK/MIX switch |
| Connectors | x XLR/JACK TRS (Input) 1x XLR (Output) |
Enclosure
| Dimensions W x H x D | 170 x 304 x 190 mm [6.69” x 11.97” x 7.48”] |
| Weight | 4.4 kg [9.70 lb] |
| Cabinet | Polypropylene |
ACCESSORIES

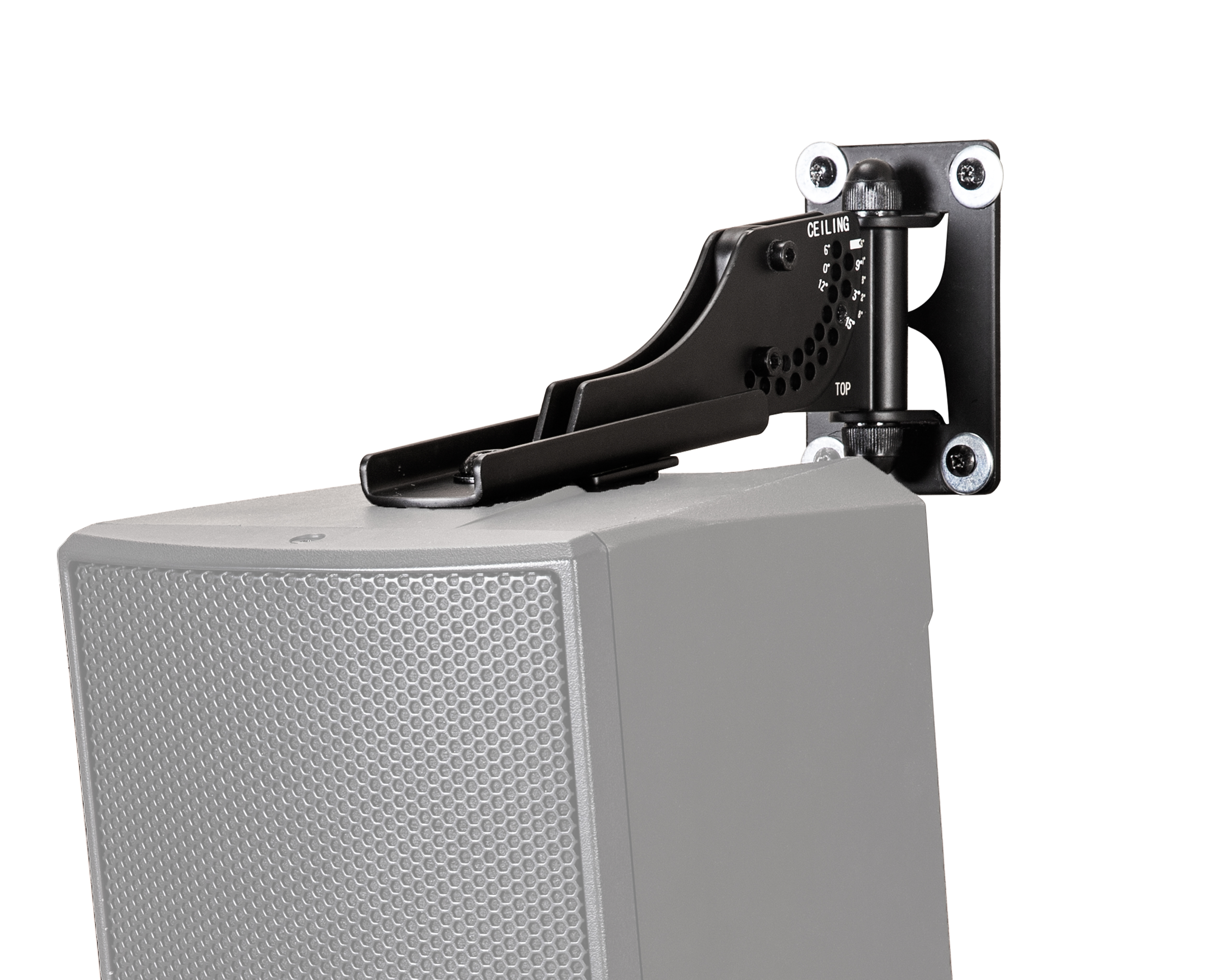

MiniBO-TB

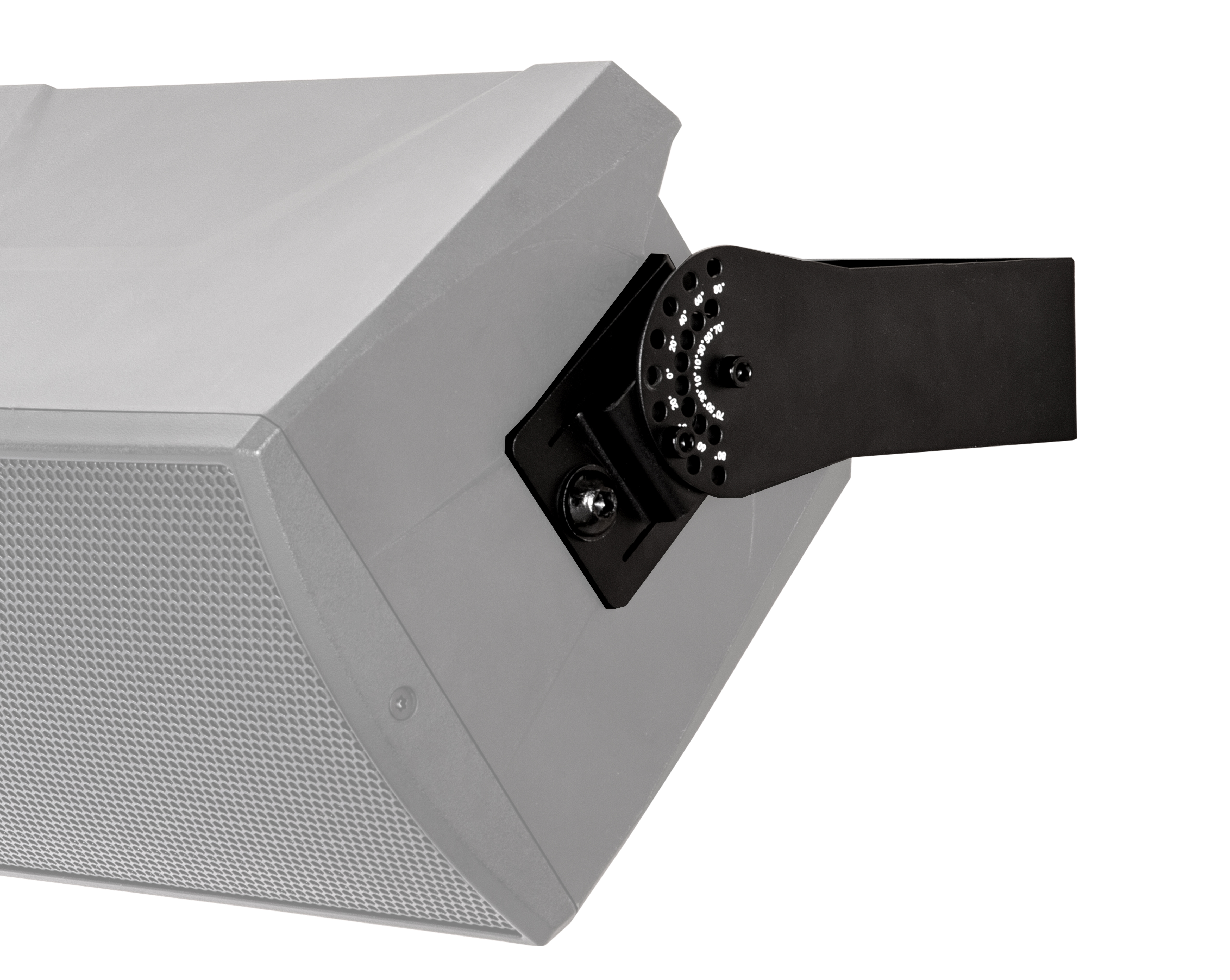

MiniBO-WB
