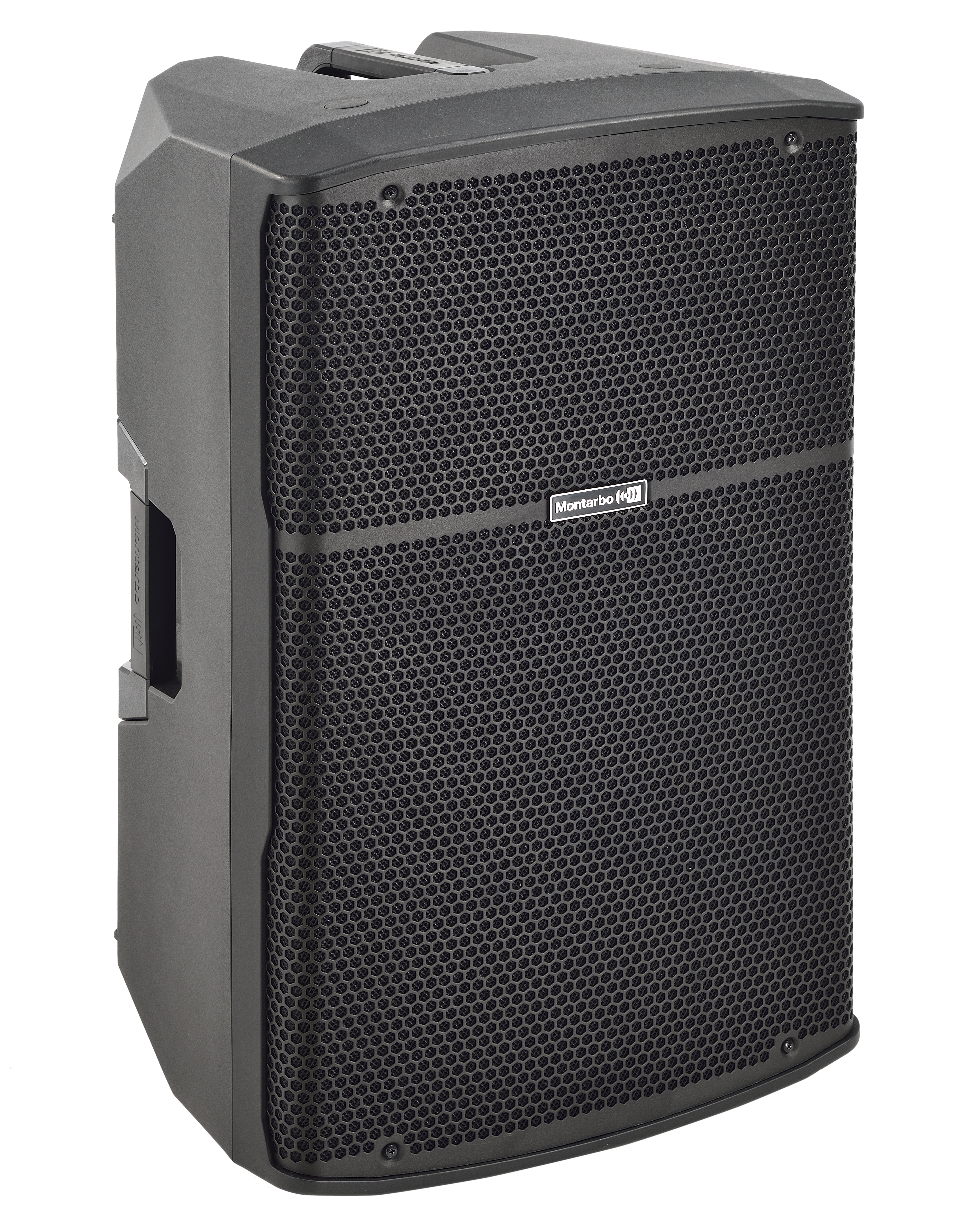

B115P is a 2-way passive speaker designed for use in PA systems or as a stage monitor in small to medium venues.
Lightweight with integrated handles, it is easily portable, extremely versatile and can be used in a variety of configurations thanks to the integrated rigging points and optional accessories.
The acoustic components are designed to withstand high sound pressure levels and make these speakers ideal also for permanent installations (clubs, venues).
The B115P speaker is equipped with a 1” compression driver for high frequencies (1.75” v.c.) and a 15” transducer (3” v.c.) for mid and low frequencies.
The mechanical design incorporates 3 integrated handles and a pole mount fitting which allows the possibility to set the tilt angle between 0° and 7.5°.
The speaker can also be used as a floor monitor, placing it on either of its two sides to obtain a tilt angle of 40°; it is also possible to suspend the speaker from the three integrated rigging points. A cover for transport and weather protection is available.
Features
- Passive 2-way speaker
- 129 dB SPL
- Wedge use
- Pole mount
- Rigging points
Product Code: 1703000000
TECHNICAL SPECIFICATIONS
Acoustical Data
| Speaker Type | 2-way Passive Speaker |
| Frequency Response [-10 dB] | 52 Hz - 21 kHz |
| Max SPL | 129 dB |
| HF | 1" - 1.75" v.c. |
| LF | 15" - 3" v.c |
| Dispersion | 90° H x 60° V |
| Crossover Frequency | 1.6 kHz |
| Peak Power | 800 W |
| RMS Power | 400 W |
Input Section
| Connectors | 2x TS JACK (Input/Link) 2x speakON® (Input/Link) |
Enclosure
| Dimensions W x H x D | 430 x 725 x 405 mm [16.9” x 28.5” x 15.9”] |
| Weight | 23.5 kg [51.8 lb] |
| Cabinet | Polypropilene |
